Polyester monofilaments(PET monofilaments )
Our company specializes in the production of polyester monofilaments for the paper machine clothing, featuring high strength, uniform structure, and excellent overall performance.
Production Specifications
The single filament diameter is adjustable in the range of 0.05–1.2 mm. Custom specifications can be produced according to customer requirements.
Products Details
Material | 100% Polyester |
Diameter Range | 0.05mm-1.2mm |
Tension(CN/Tex) | >4.5cn/Dtex |
Melting point | 260-265°C |
Elongation | 40% |
SHRINKAGE 180℃ % | <5% |
Flame retardant degree | UL94 V-1 degree(Flame retardant modified polyester monofilament) |
Spools | DIN 160, DIN 250, DIN 200, DIN330, DIN 335 |
Color | Raw white, black or customized |
Key Characteristics
l High tensile strength
l Excellent roundness
l Minimal diameter deviation (±0.005 mm)
l Uniform shrinkage (±0.5%)
l Customizable properties available upon request

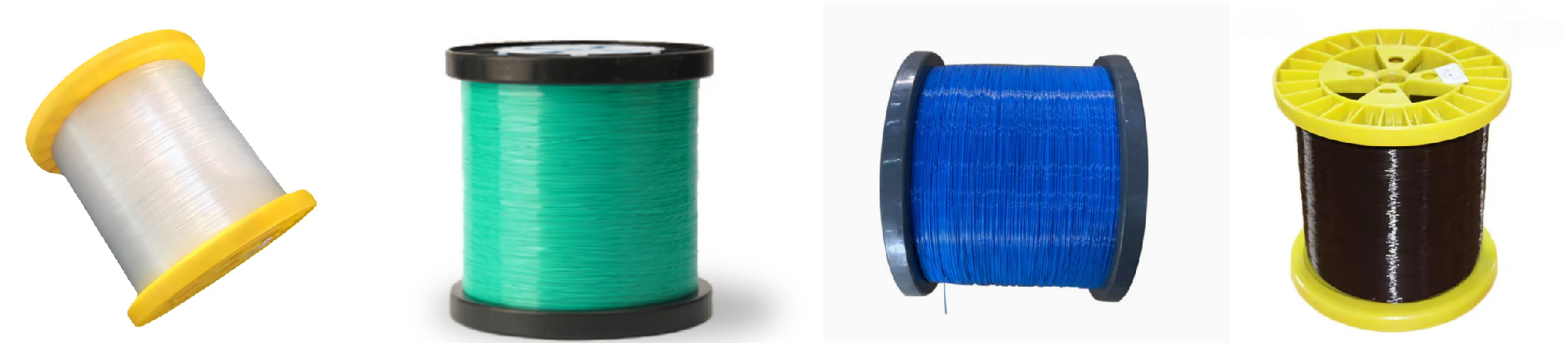

Color & Functional Treatments

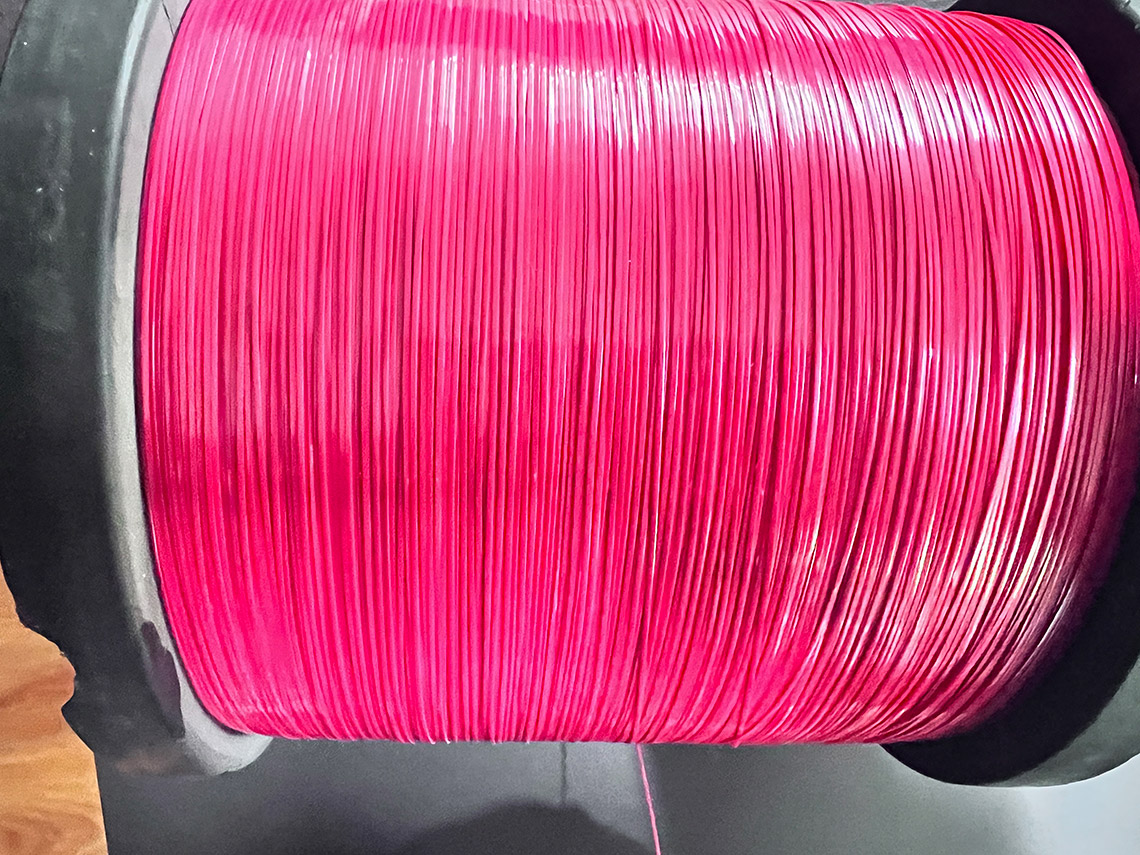

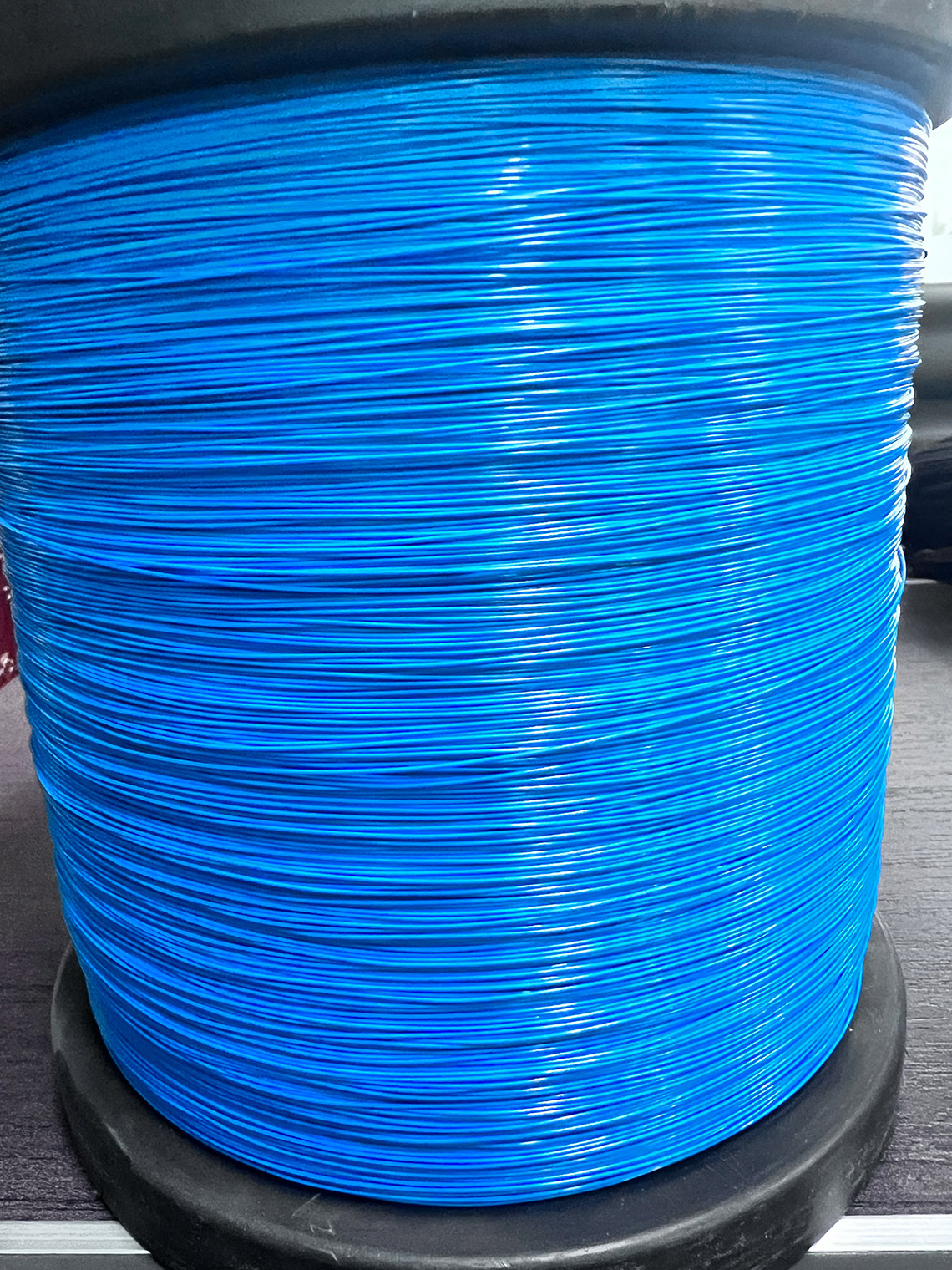

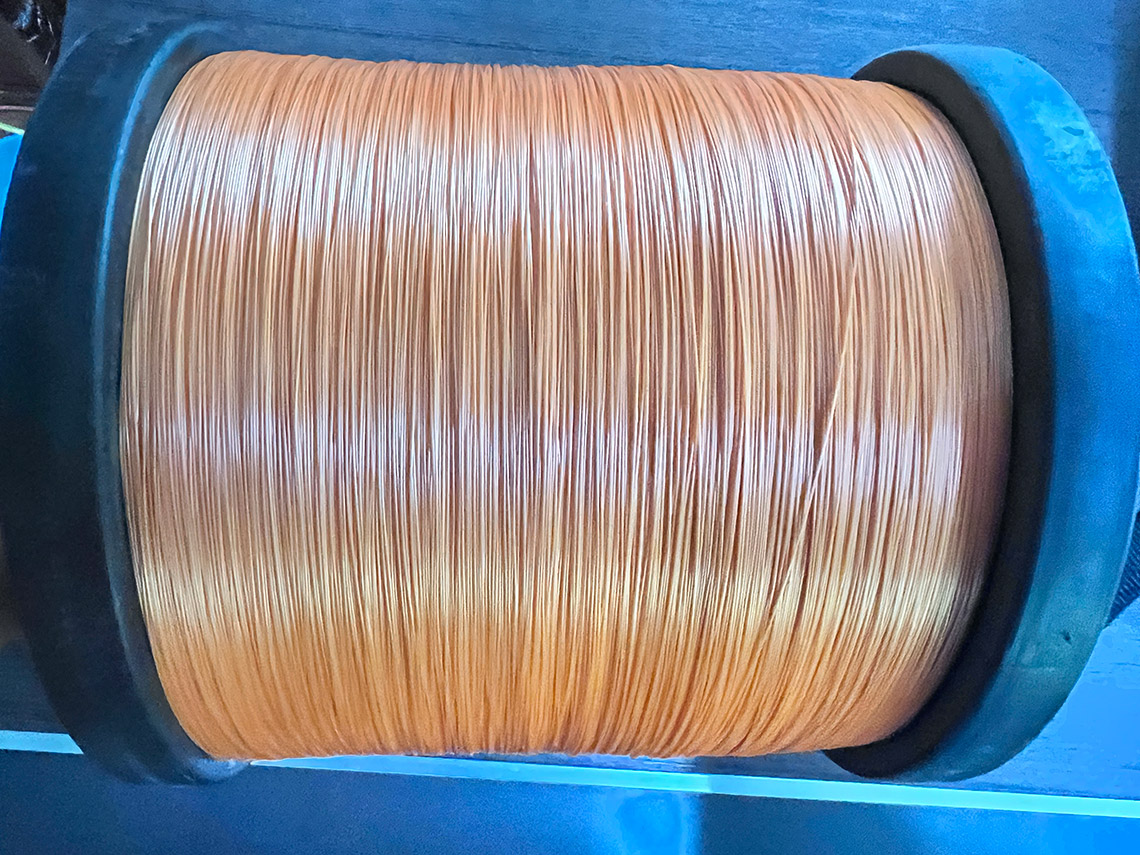

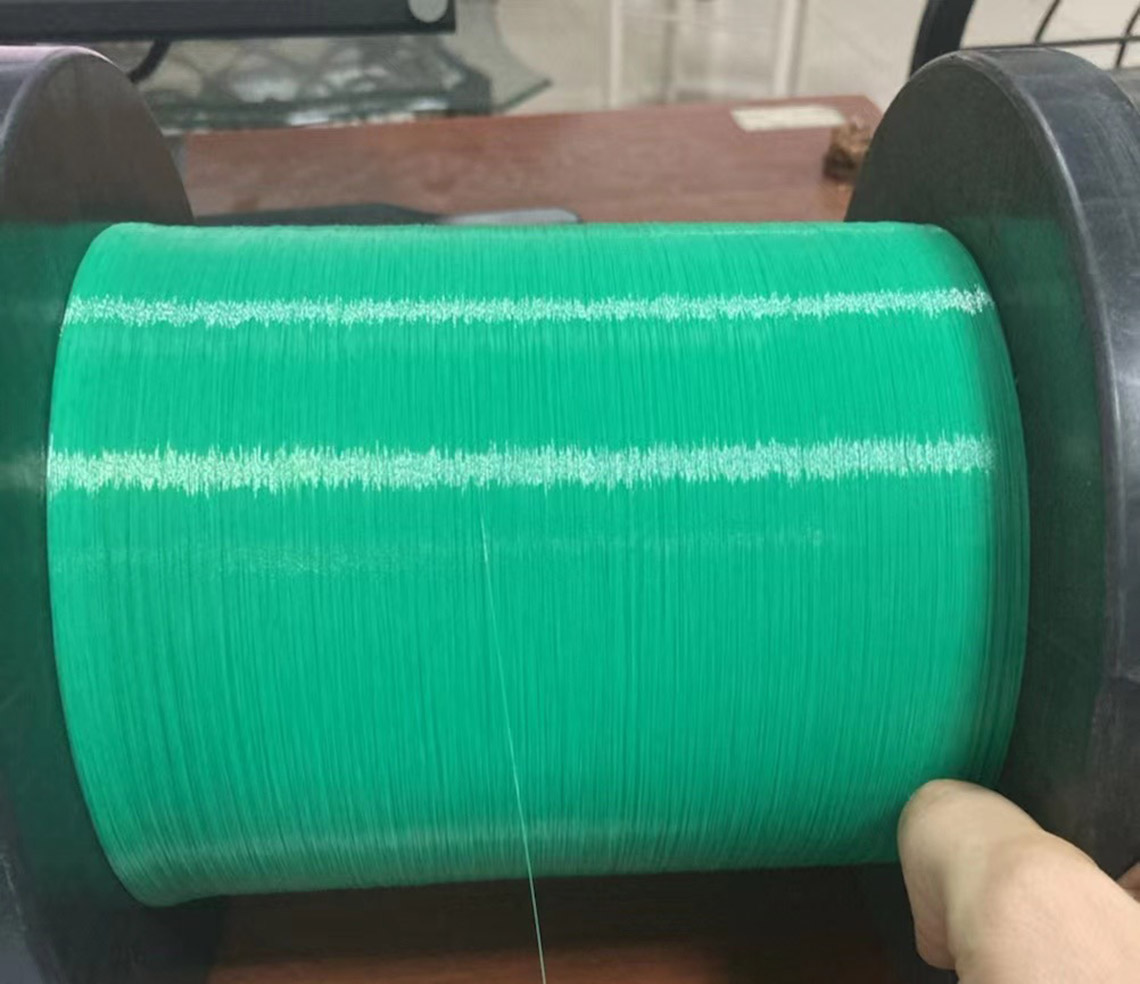

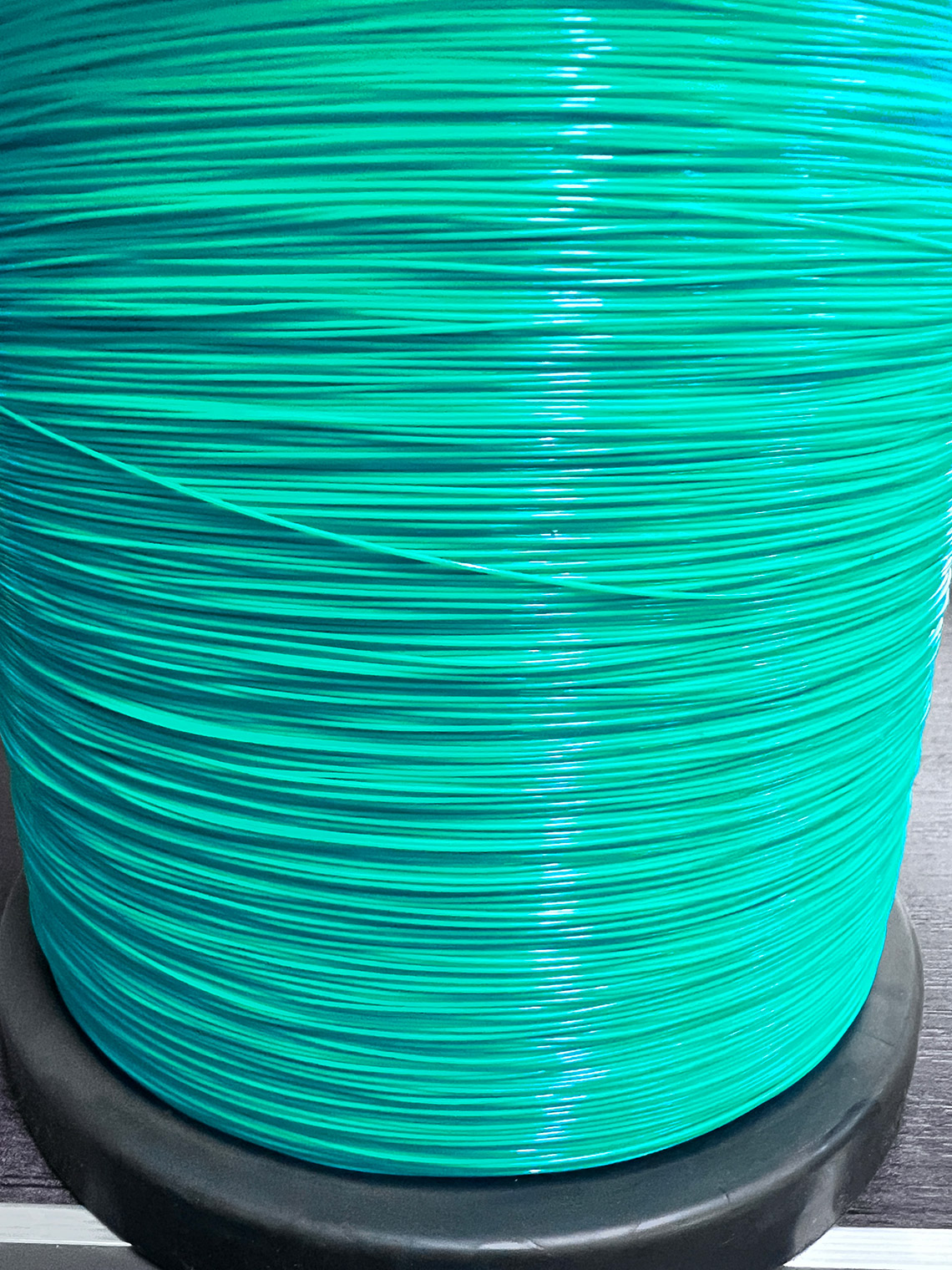

Custom colors available
Optional treatments: adhesion modification, flame retardant, reinforcement, etc.

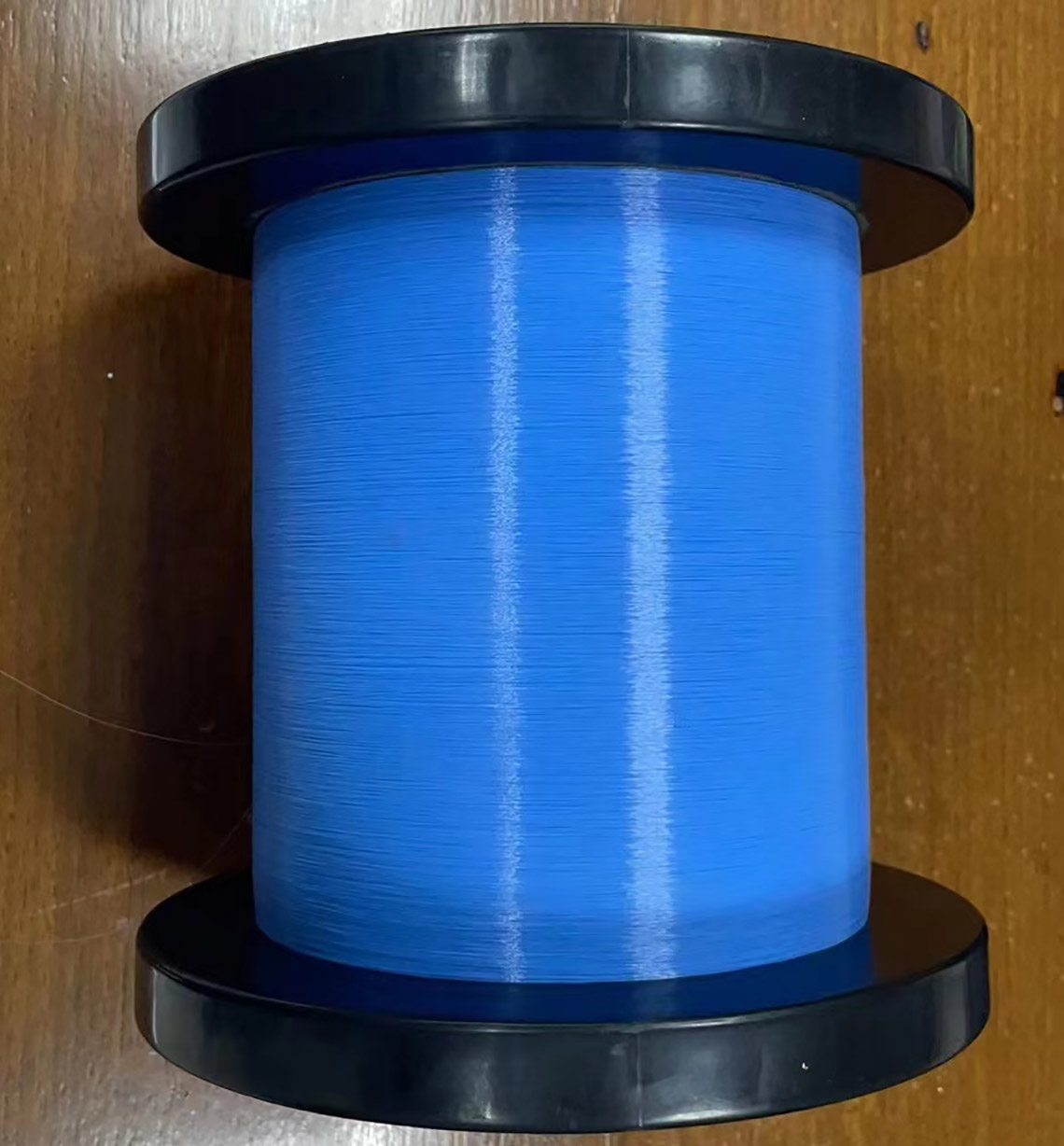

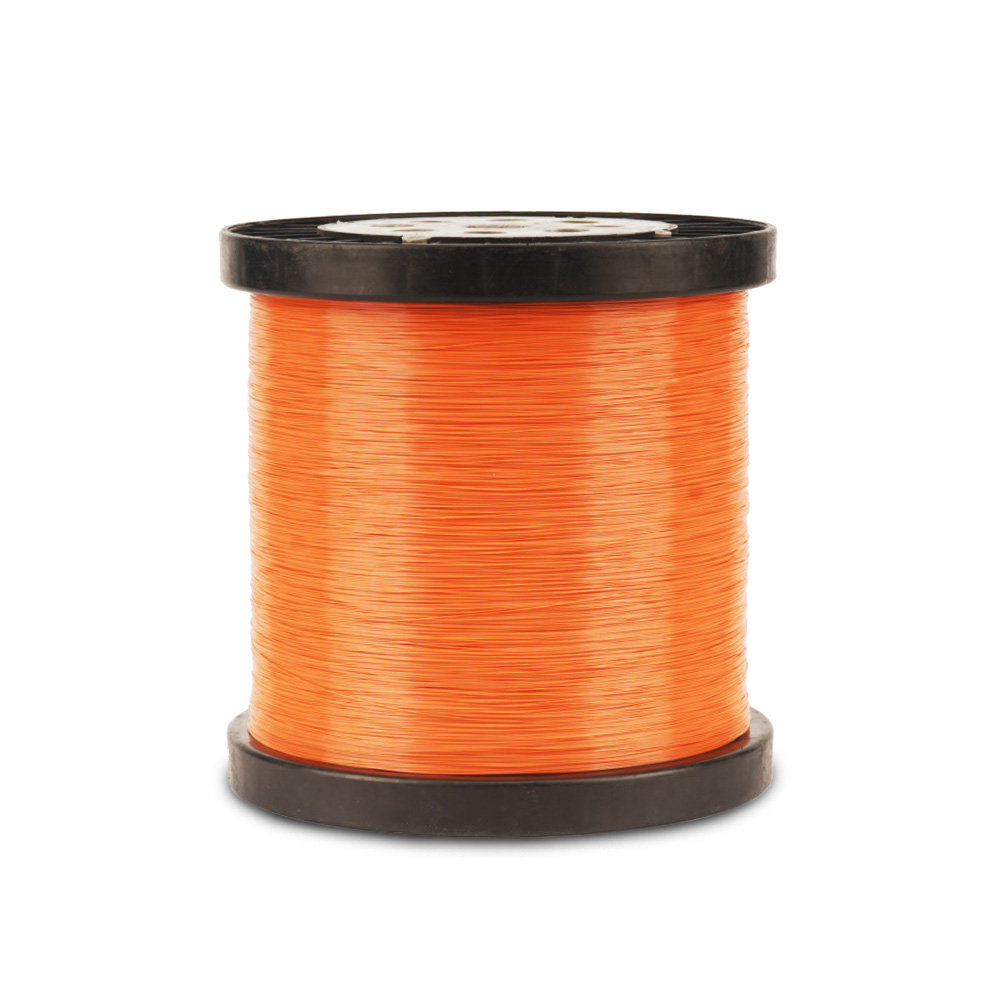

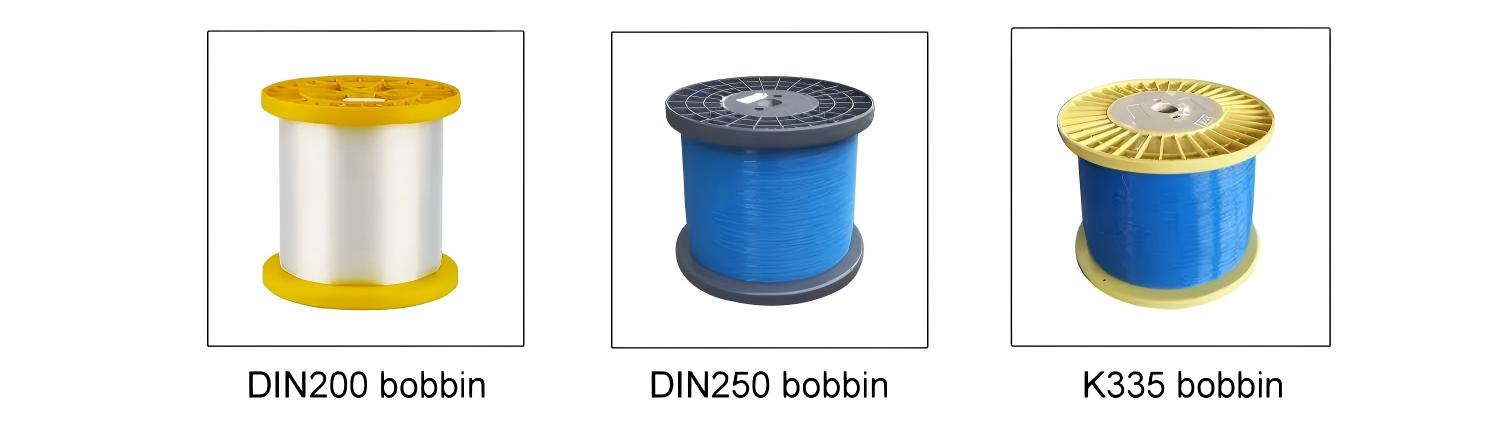

Spool Types
DIN 160, DIN 200, DIN 250, DIN 330, DIN 335

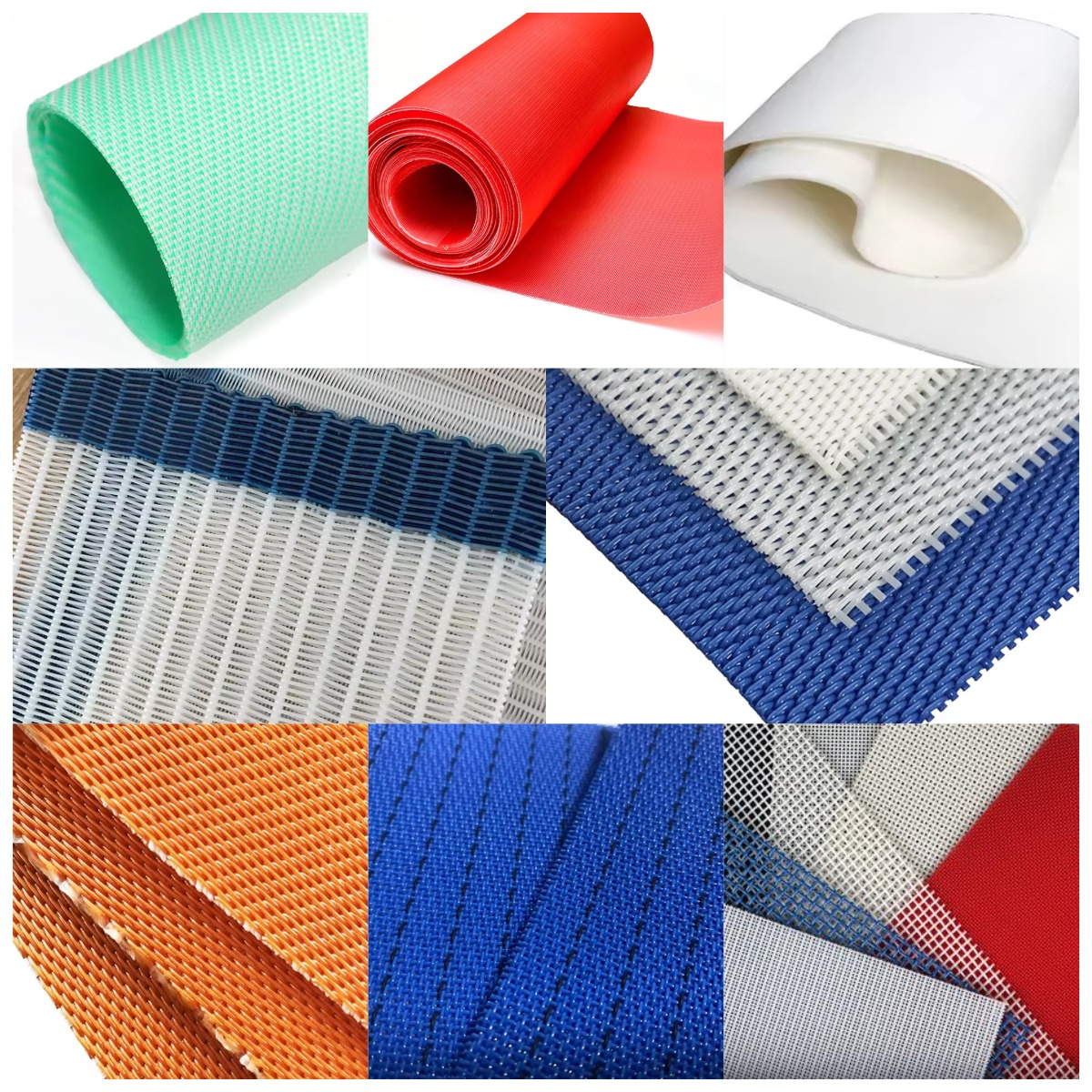

Applications
Paper machine clothing: forming fabrics, Spiral Dryer Fabrics, Woven dryer fabric,paper machine felt
Industrial Filter Mesh：Press Filter Mesh，Sludge Dewatering Mesh Belt，Vacuum Filter Belt，Desulfurization & Denitrification Mesh Belt
Industrial Conveyor Belt： Anti-static Mesh Belt，Polyester Conveyor Belt, etc.
